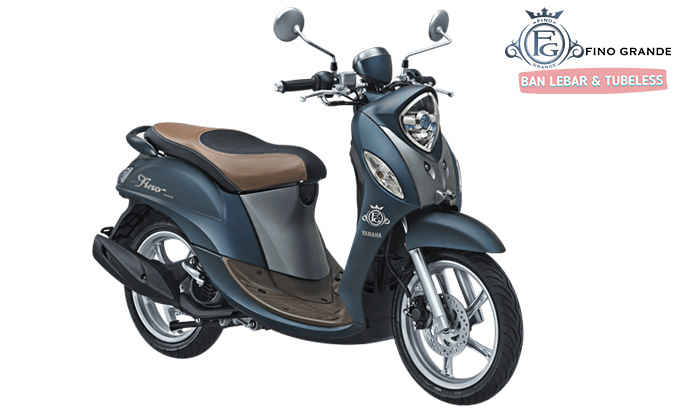

New Fino Grande Tubeless & Ban Lebar 125 Blue Core
Harga OTR: Rp 18.900.000,-
Mesin
| Tipe Mesin |
Air cooled, 4-stroke, SOHC |
| Jumlah / Posisi Silinder |
Single cylinder |
| Diameter X Langkah |
52,4 x 57,9 mm |
| Volume Cylinder |
125 cc |
| Perbandingan Kompresi |
9,5 : 1 |
| Daya Maksimum |
7.0 kW (9.52 PS) / 8000rpm |
| Torsi Maksimum |
9.6 N.m (0,98 kgf.m) / 5500rpm |
| Sistem Starter |
Elektrik & kick starter |
| Sistem Pelumasan |
Basah |
| Kapasitas Oli Mesin |
Total = 0,84 L ; Berkala = 0,80 L |
| Sistem Bahan Bakar |
Fuel Injection |
| Tipe Kopling |
Kering, sentrifugal Automatic |
| Tipe Transmisi |
V-belt automatic |
Dimensi
| P X L X T |
1870mm X 700mm X 1066mm |
| Jarak Sumbu Roda |
1260mm |
| Jarak Terendah ke Tanah |
135mm |
| Tinggi Tempat Duduk |
745mm |
| Berat Isi |
98 kg |
| Kapasitas Tangki Bensin |
4,2 L |
Rangka
| Tipe Rangka |
Underbone |
| Suspensi Depan |
Teleskopik |
| Suspensi Belakang |
Unit swing |
| Ban Depan |
80/80-14M/C 43P |
| Ban Belakang |
100/70-14M/C 51P |
| Rem Depan |
Disc brake |
| Rem Belakang |
Drum brake |
Kelistrikan
| Sistem Pengapian |
TCI |
| Battery |
YUASA/YTZ6V |
| Tipe Busi |
NGK/CR6HSA |
